XII-Electric Potential-Paper no-01

Hello students . You are studying unit-2 , Electric potemtial . For your practice , answer the following questions with in two days .

Guidelines for submission of your answersheet:-

  1. Answer every question in plain white paper
  2. You can type your answer
  3. You can take a clear picture of your answer or make a PDF before submission .
  4. Choose the images of the answer or PDF from your desktop or mobile and submit it  in the comment section below the post  .
  5. You can upload all images or PDF all together

Electric Potential :: Paper – 01

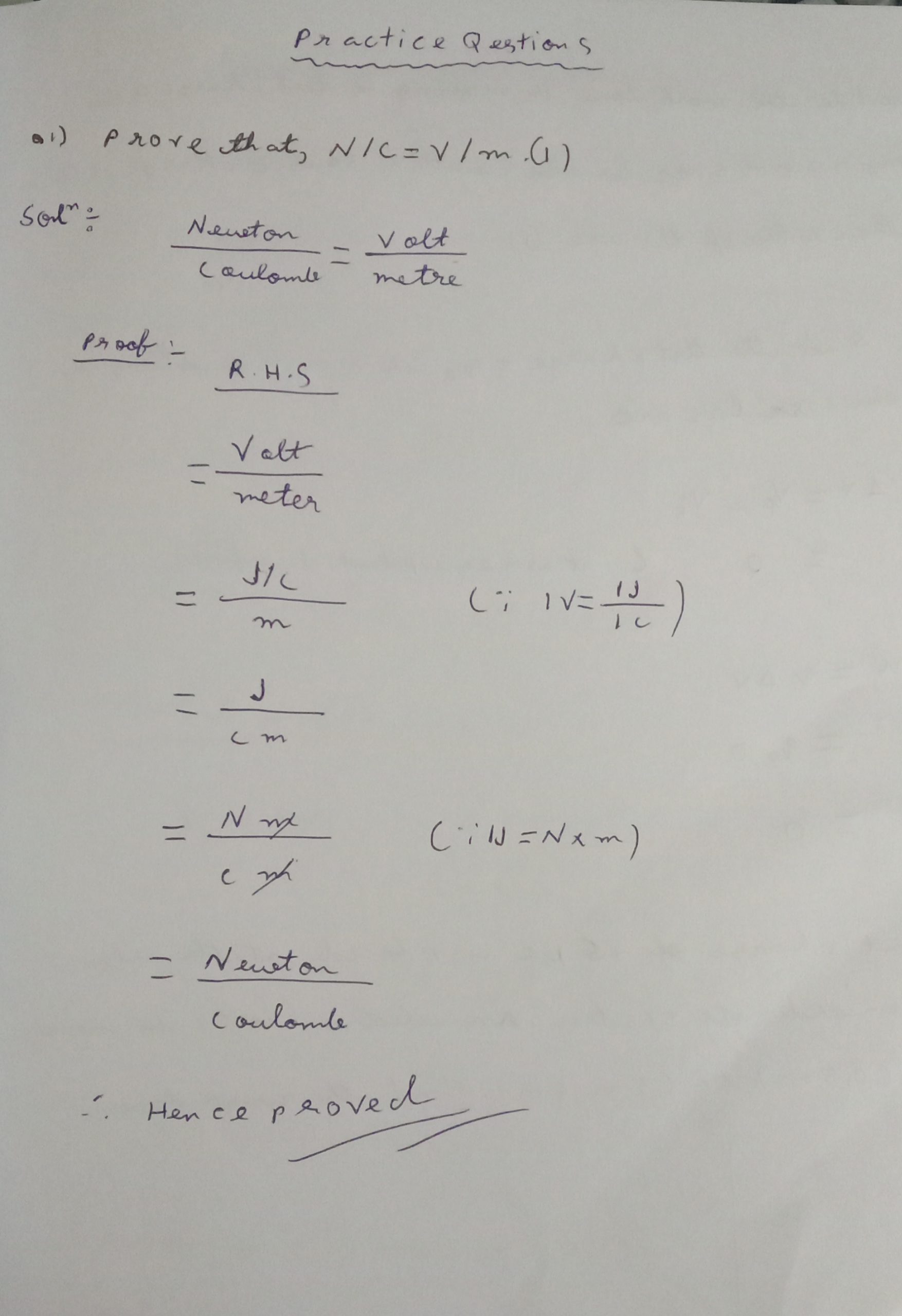

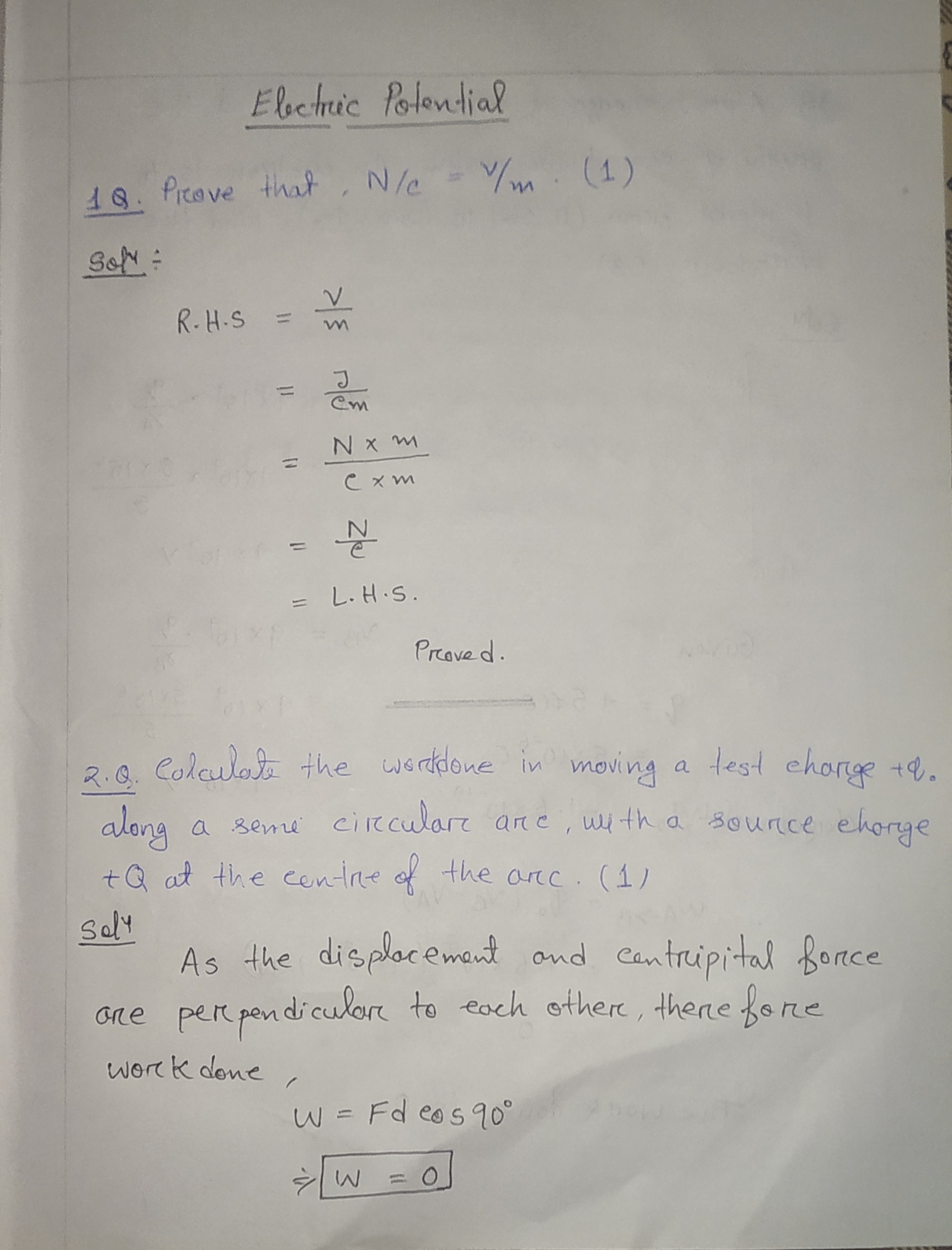

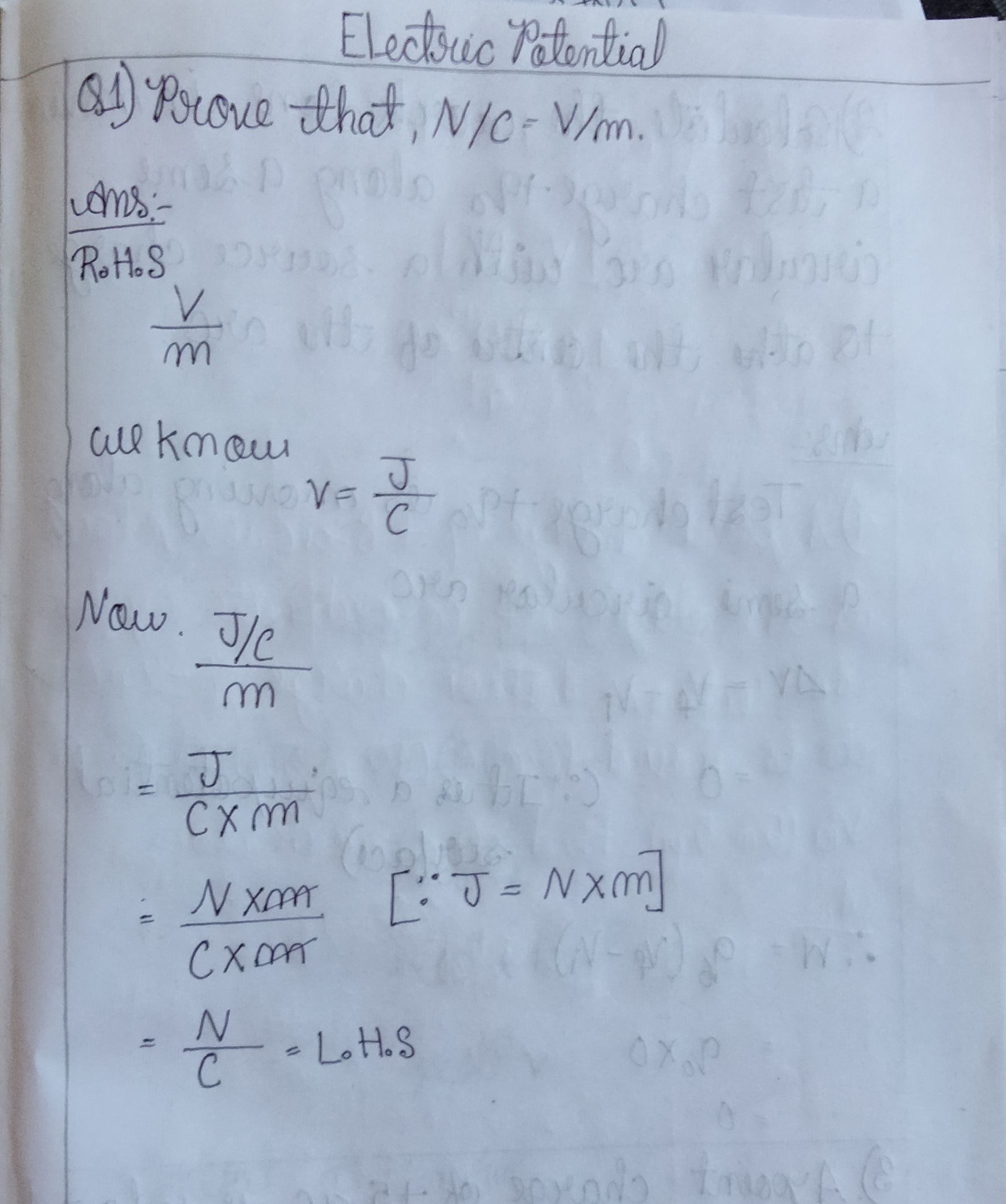

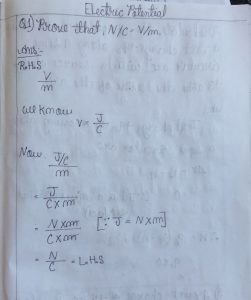

  1. Prove that ,  N/C = V/m .    (1)

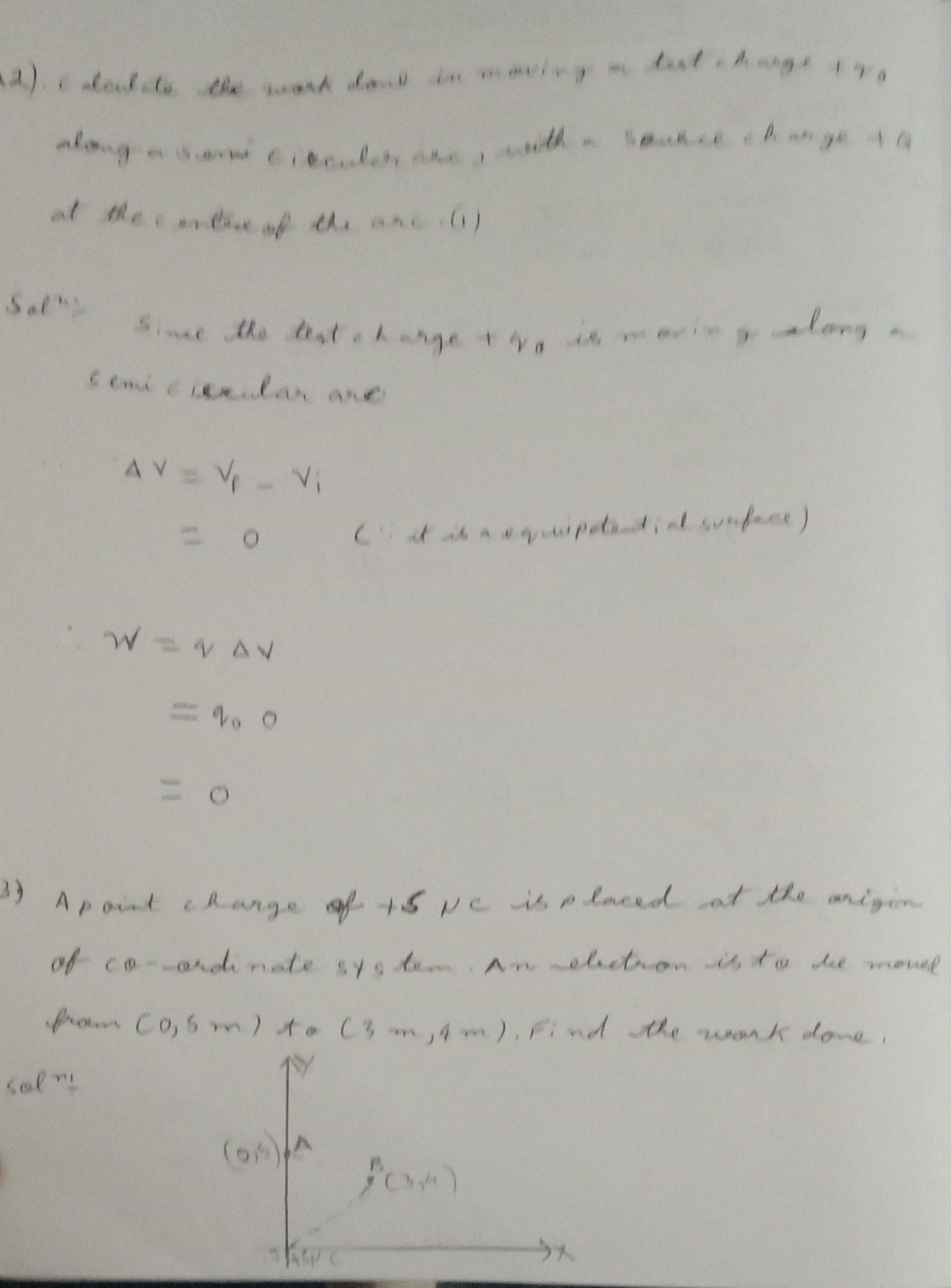

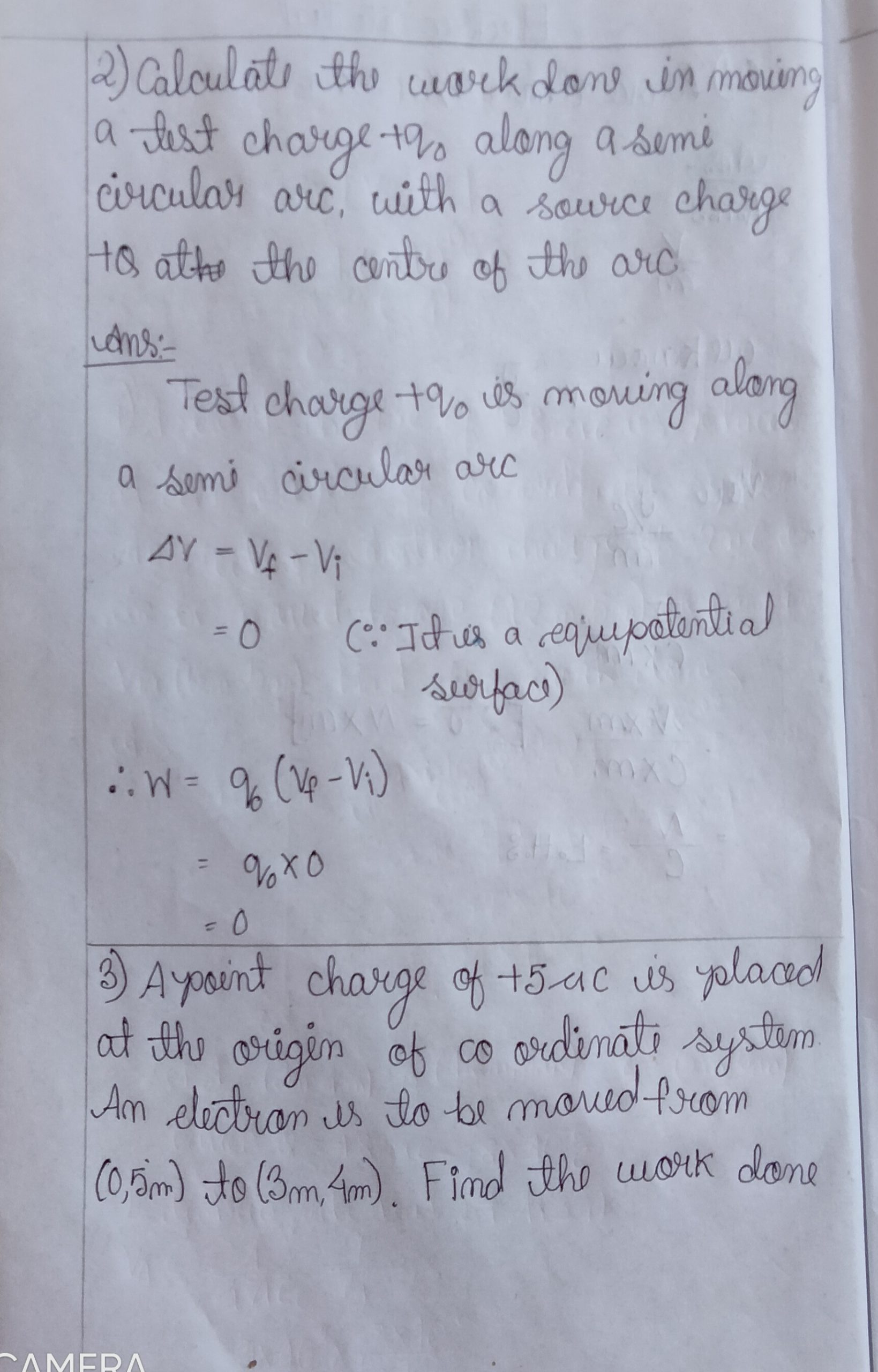

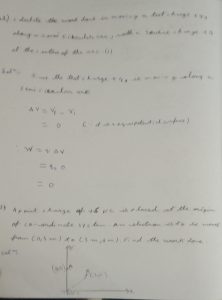

  2. Calculate the work done  in moving  a test charge +q0 along a semi circular arc , with a source charge + Q at the centre of the arc.    (1)

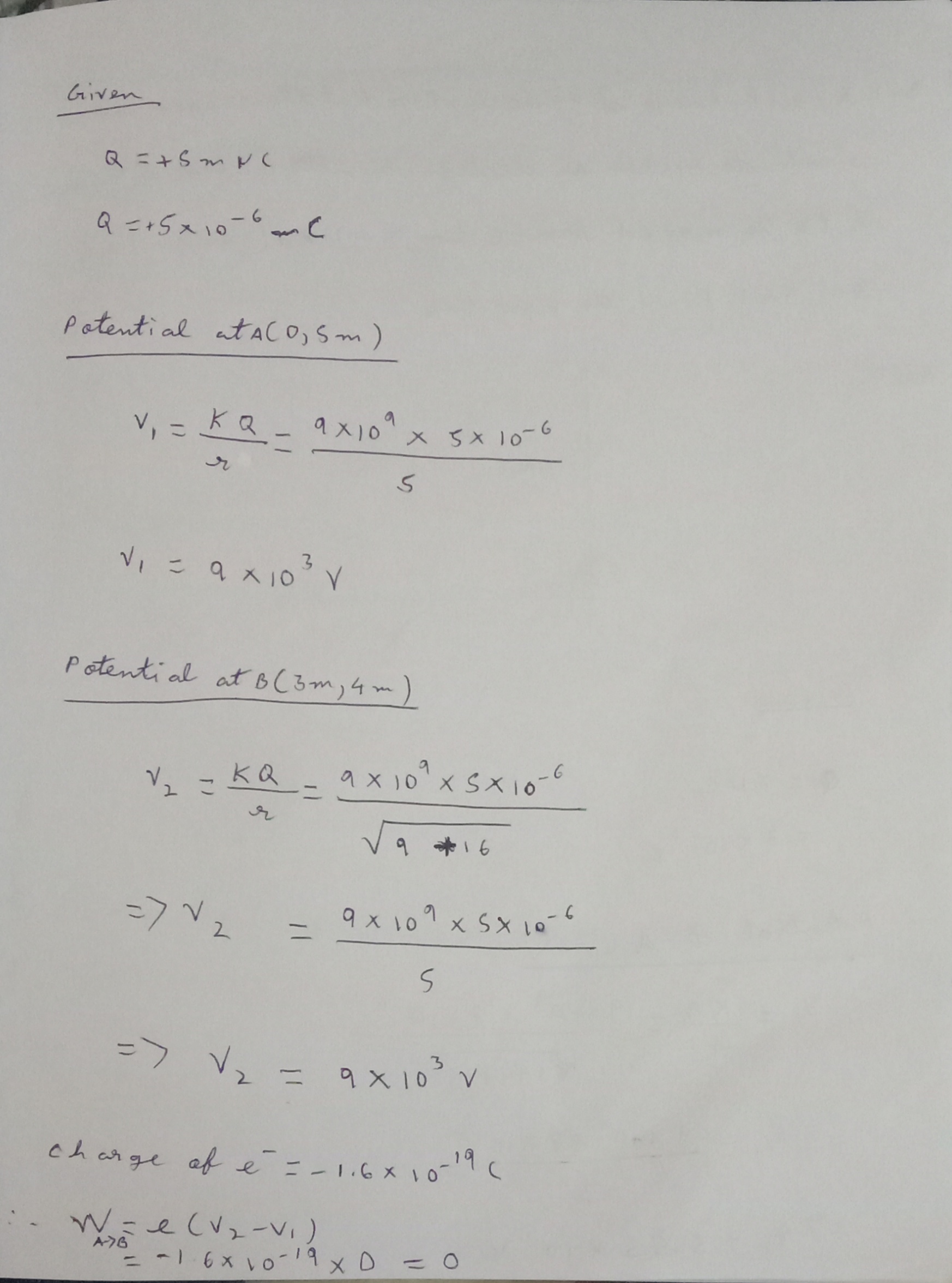

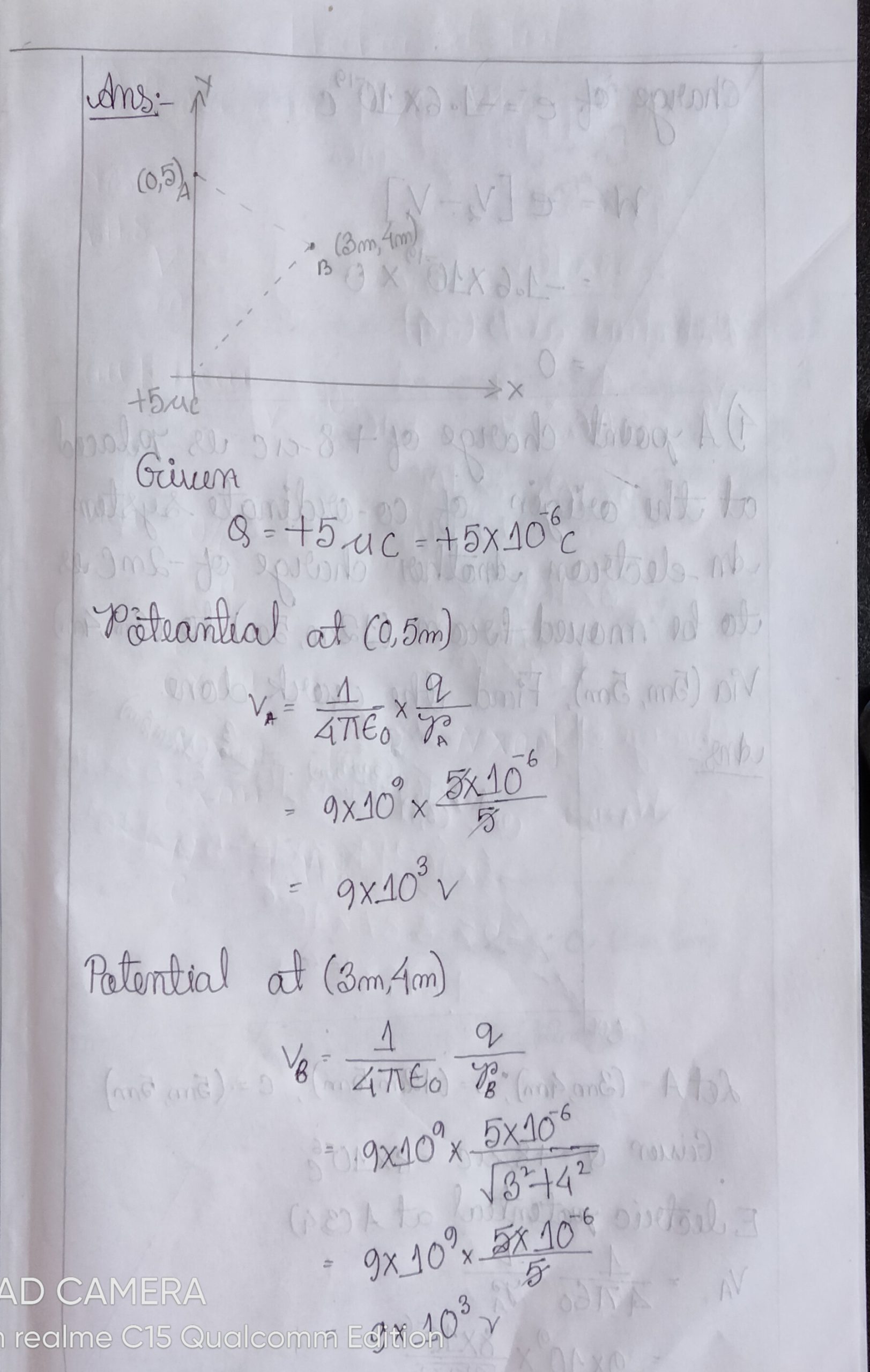

  3. A point charge of +5 μC is placed at the origin of co ordinate system . An electron is to be moved from (0, 5m ) to ( 3m, 4m) . Find the work done .    (3)

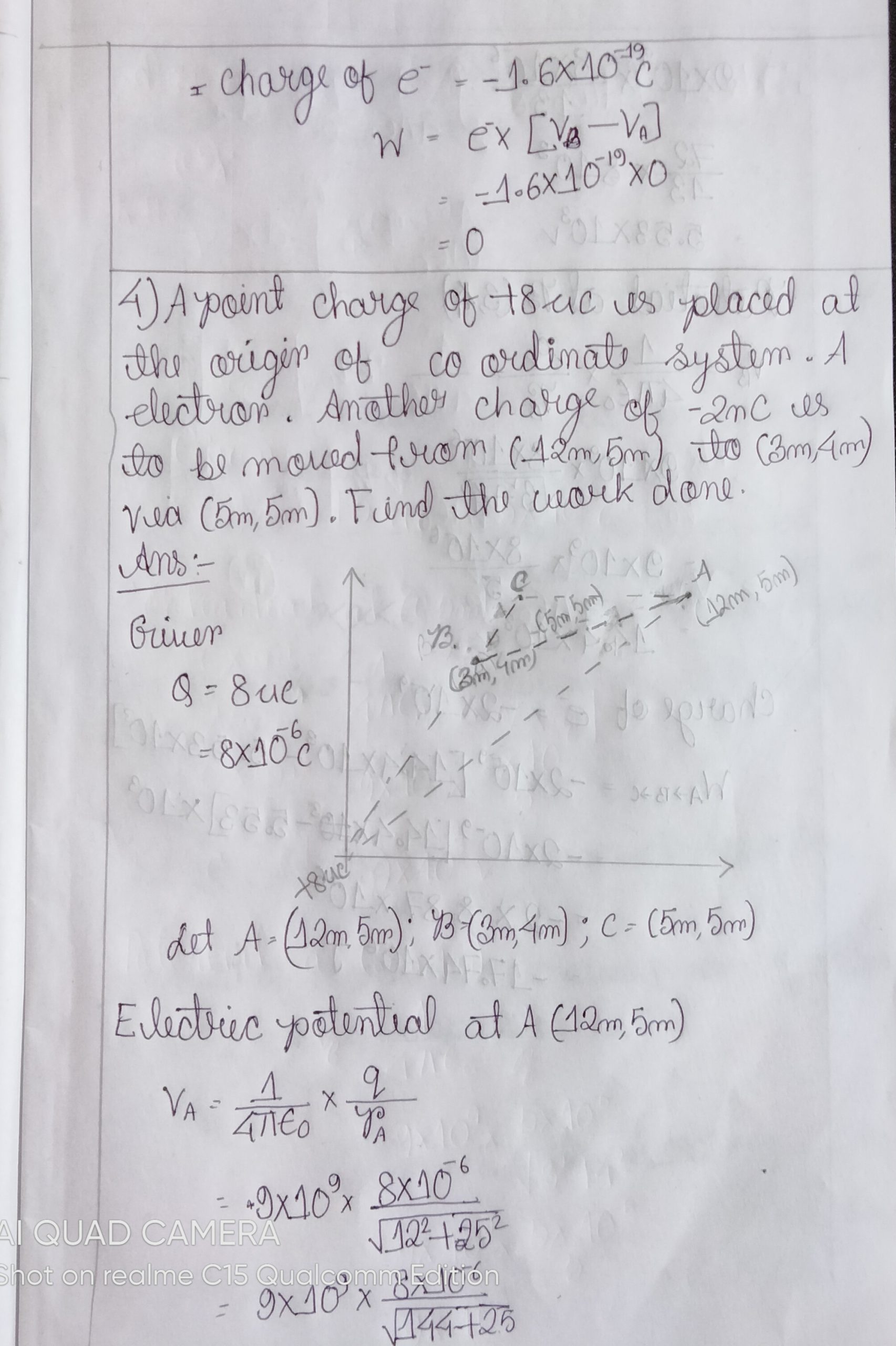

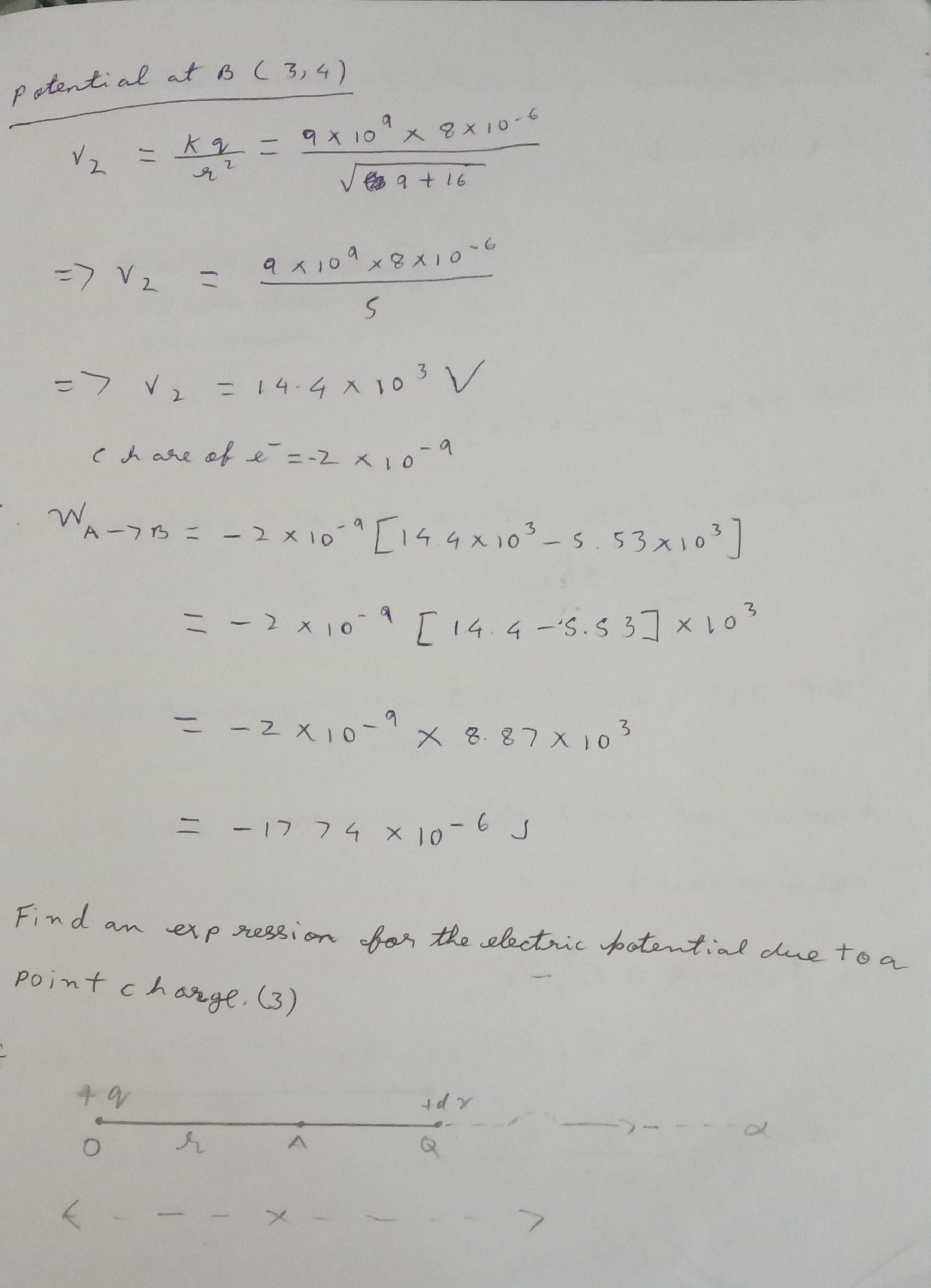

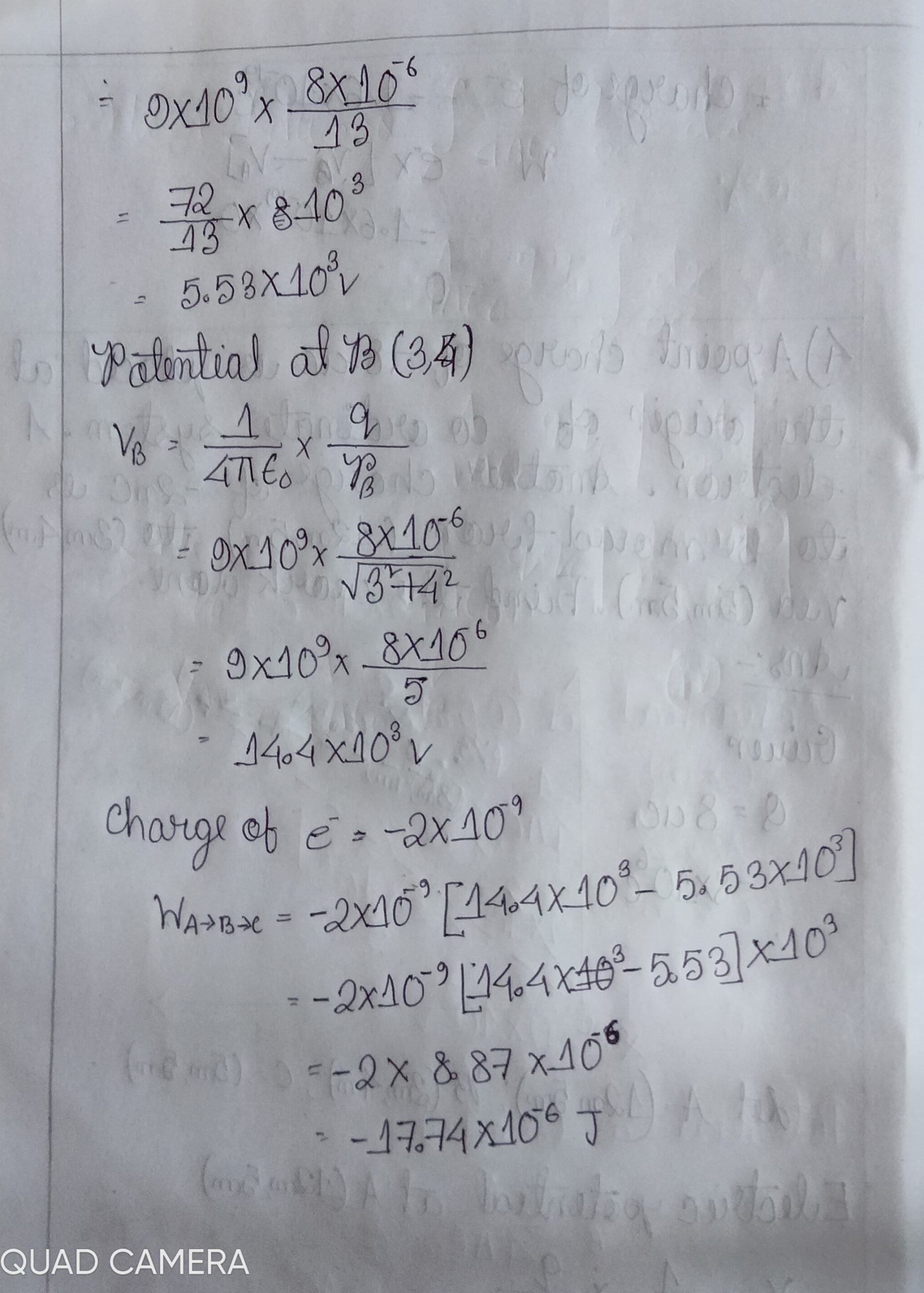

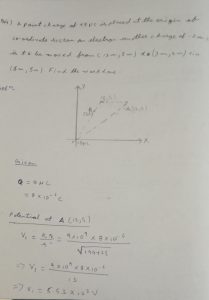

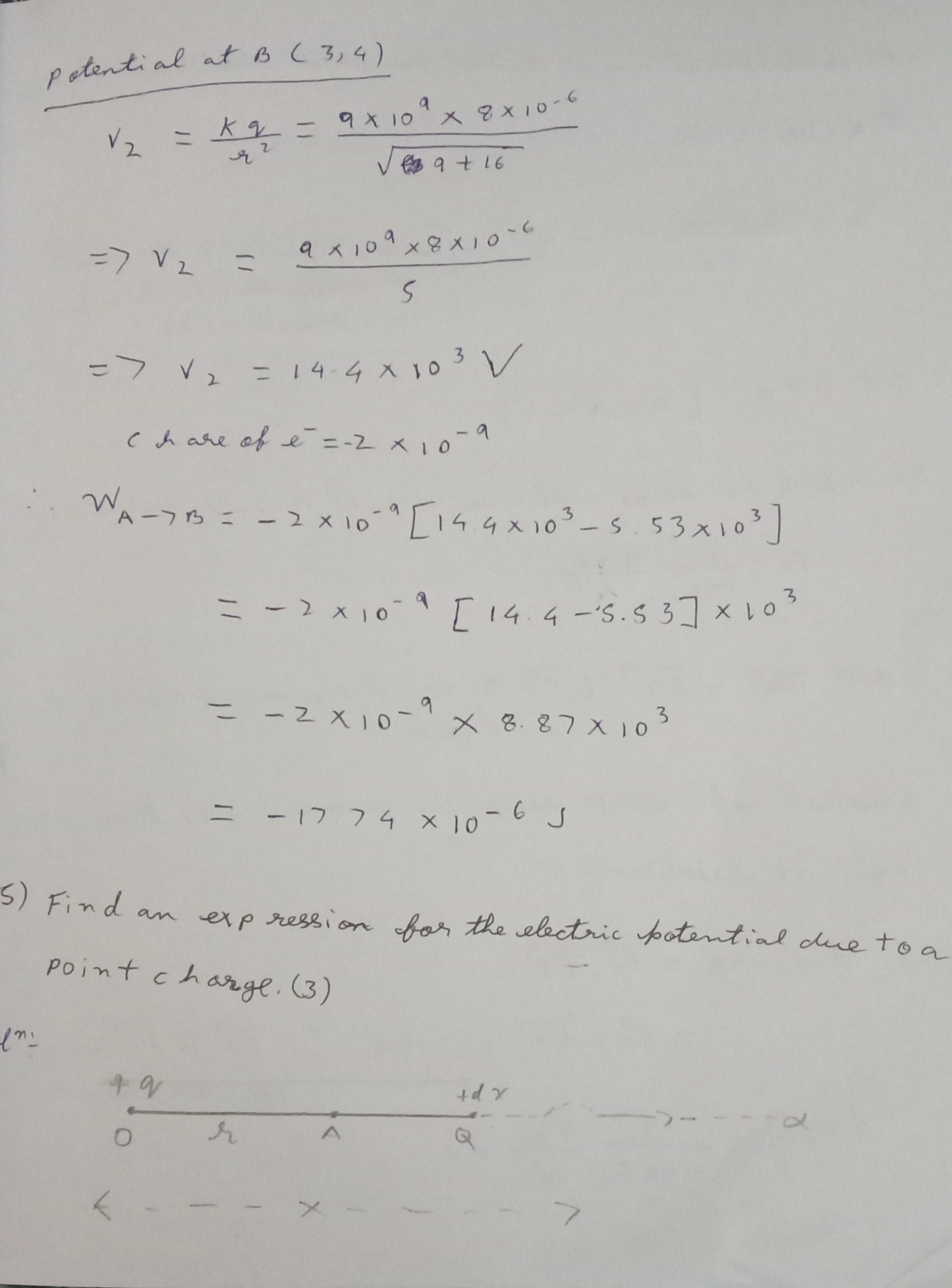

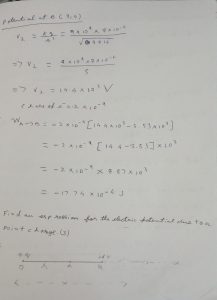

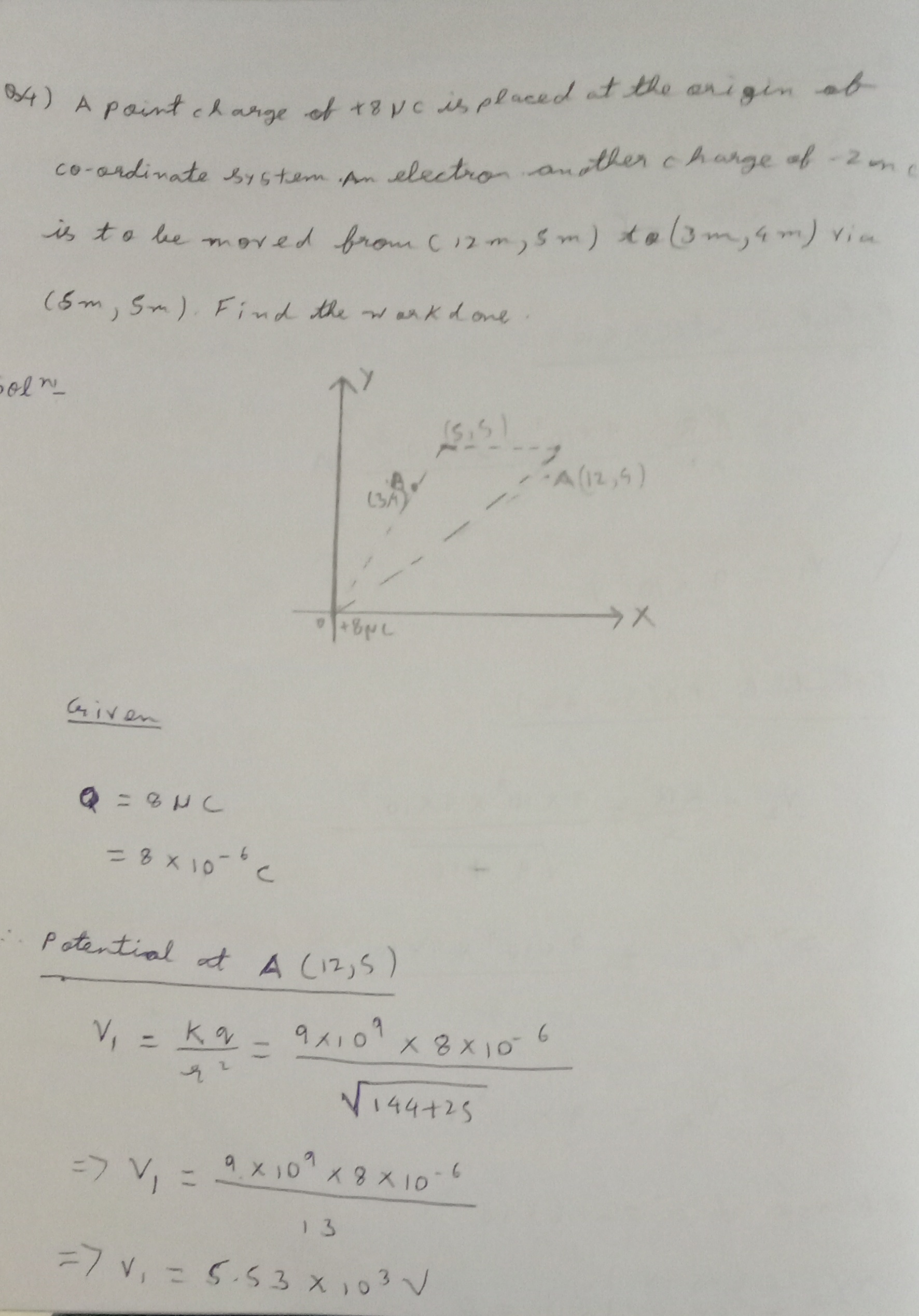

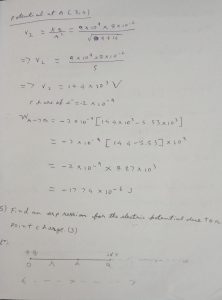

  4. A point charge of +8 μC is placed at the origin of co ordinate system . An electron Another charge of – 2 nC is to be moved from (12m, 5m ) to ( 3m, 4m) via (5m,5m) . Find the work done .   (3)

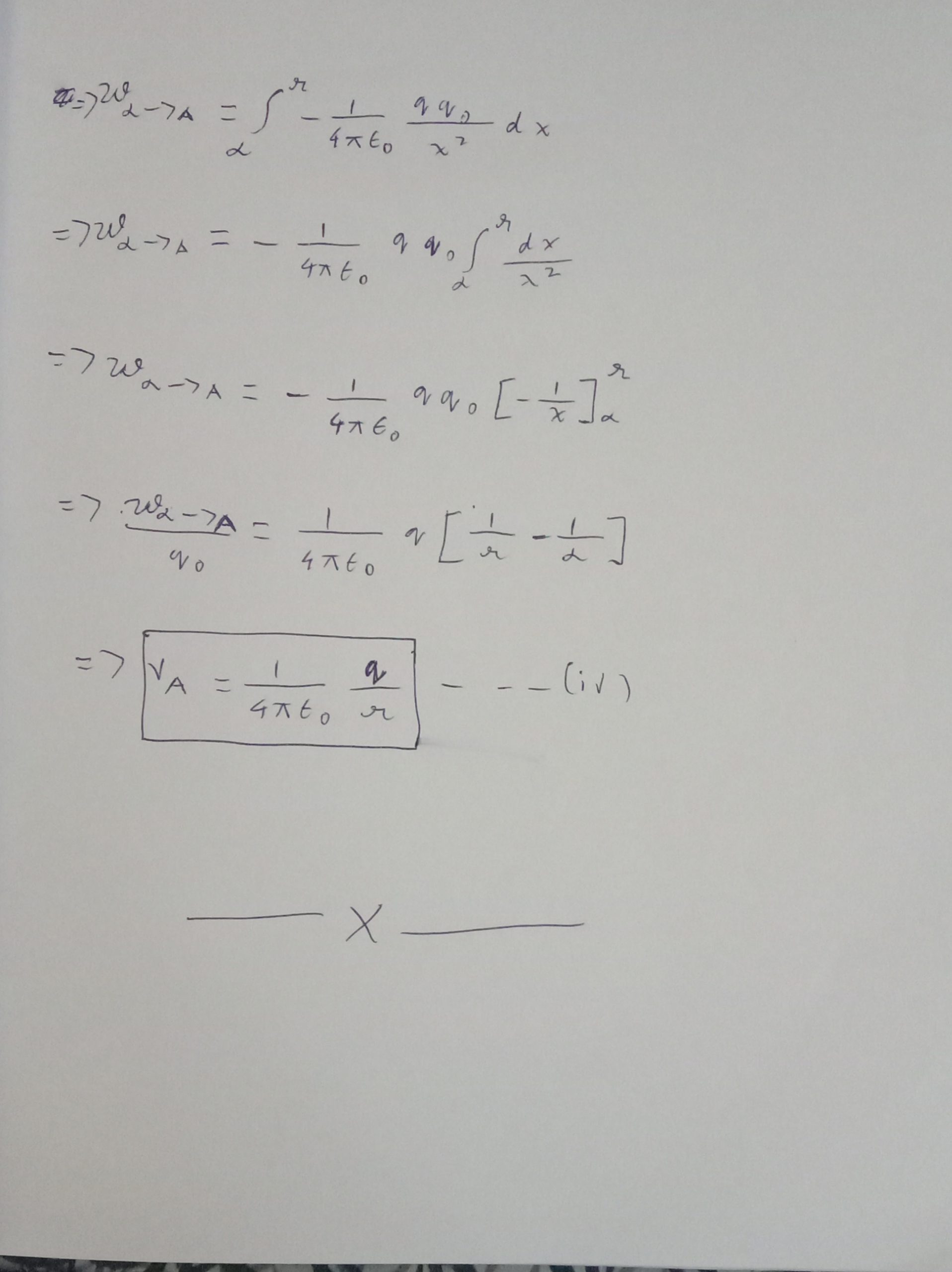

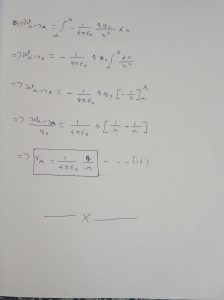

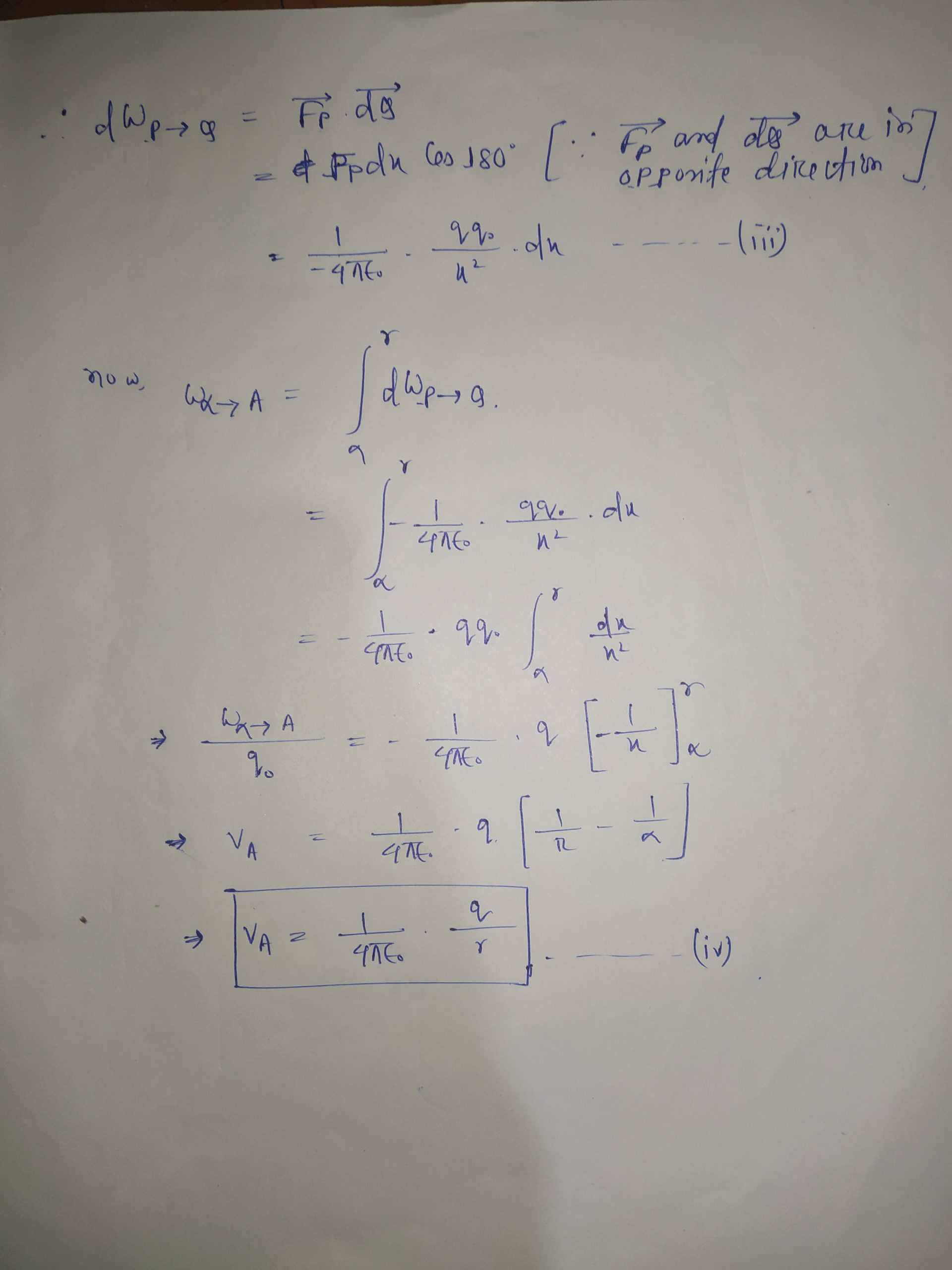

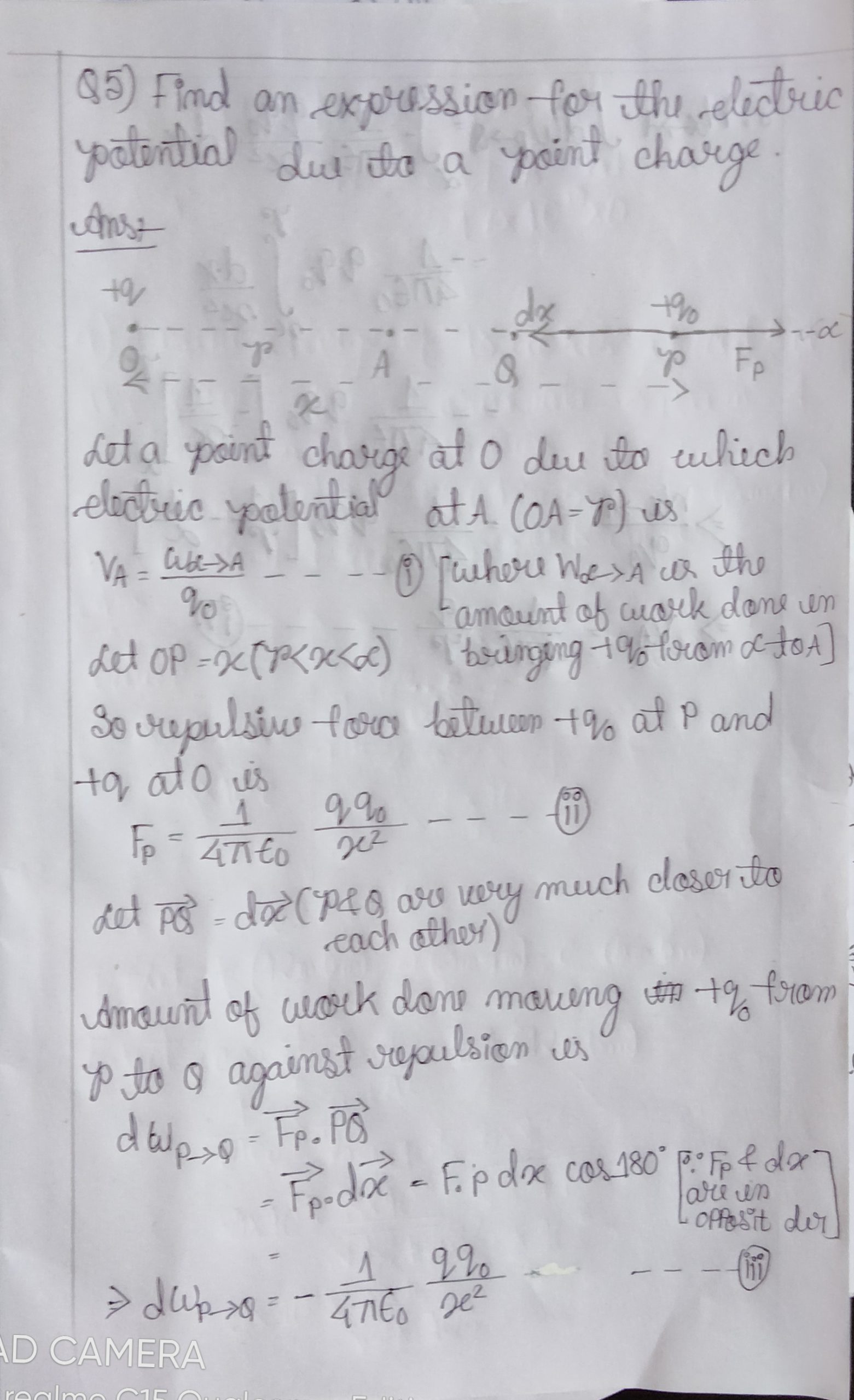

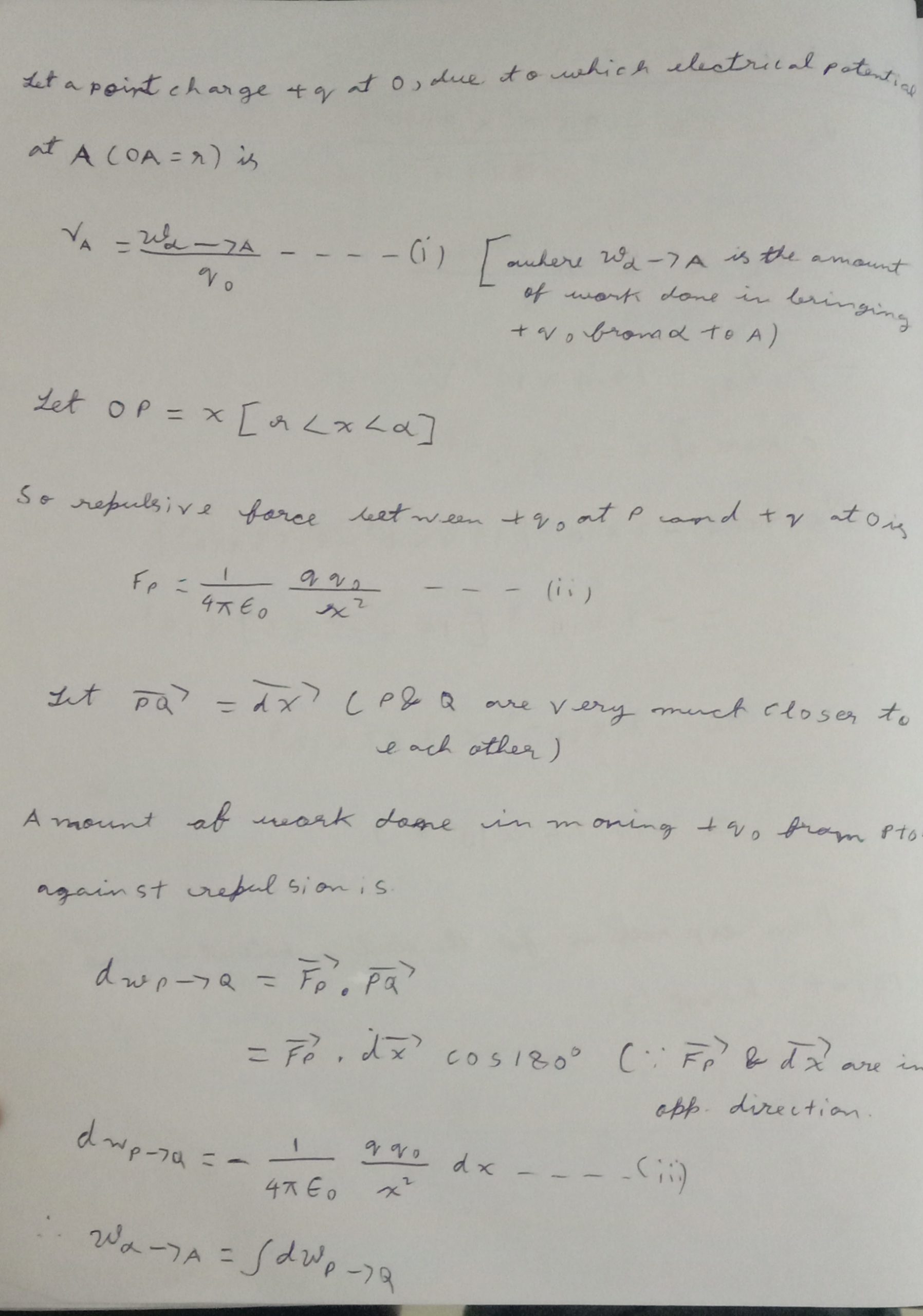

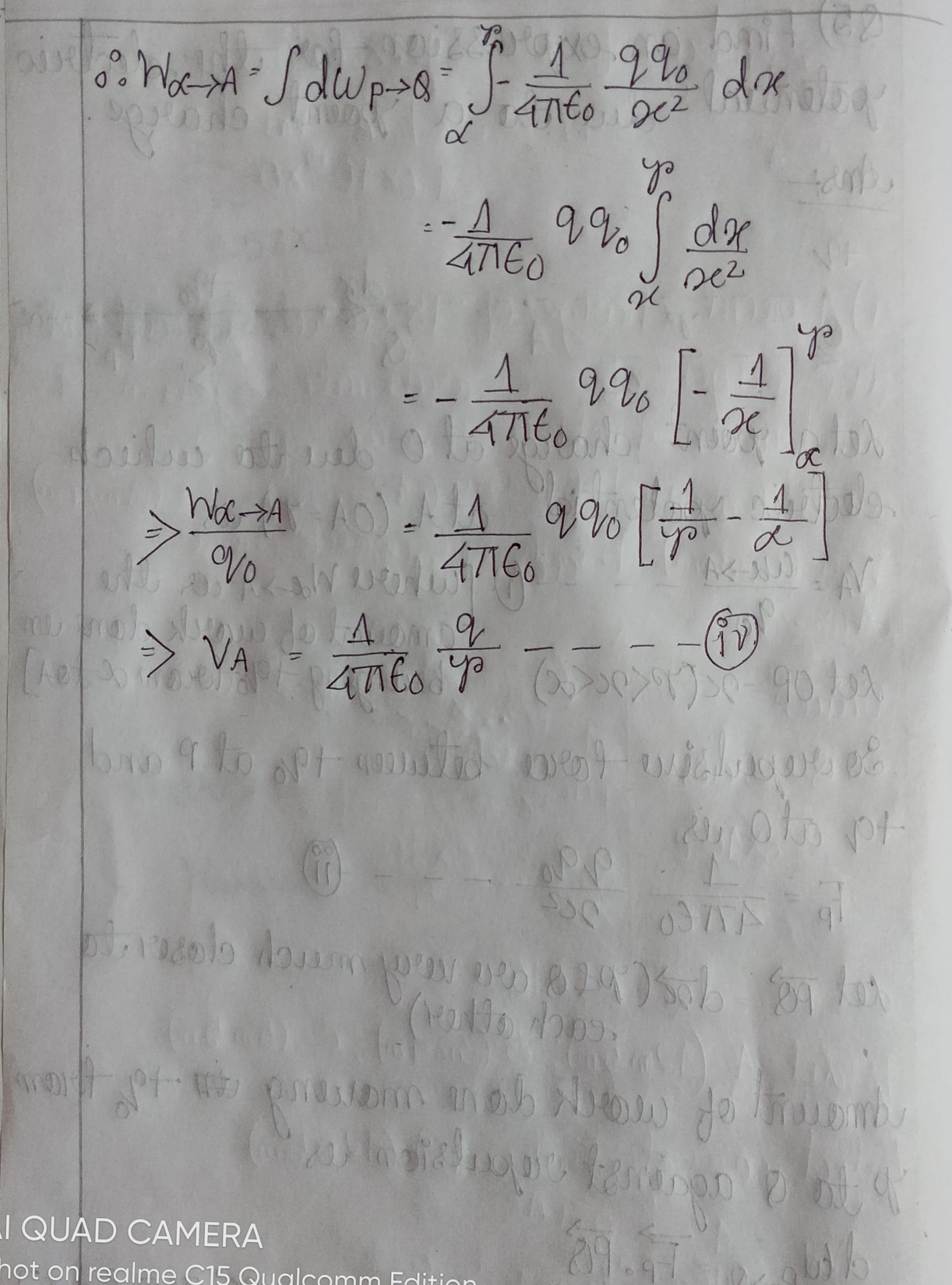

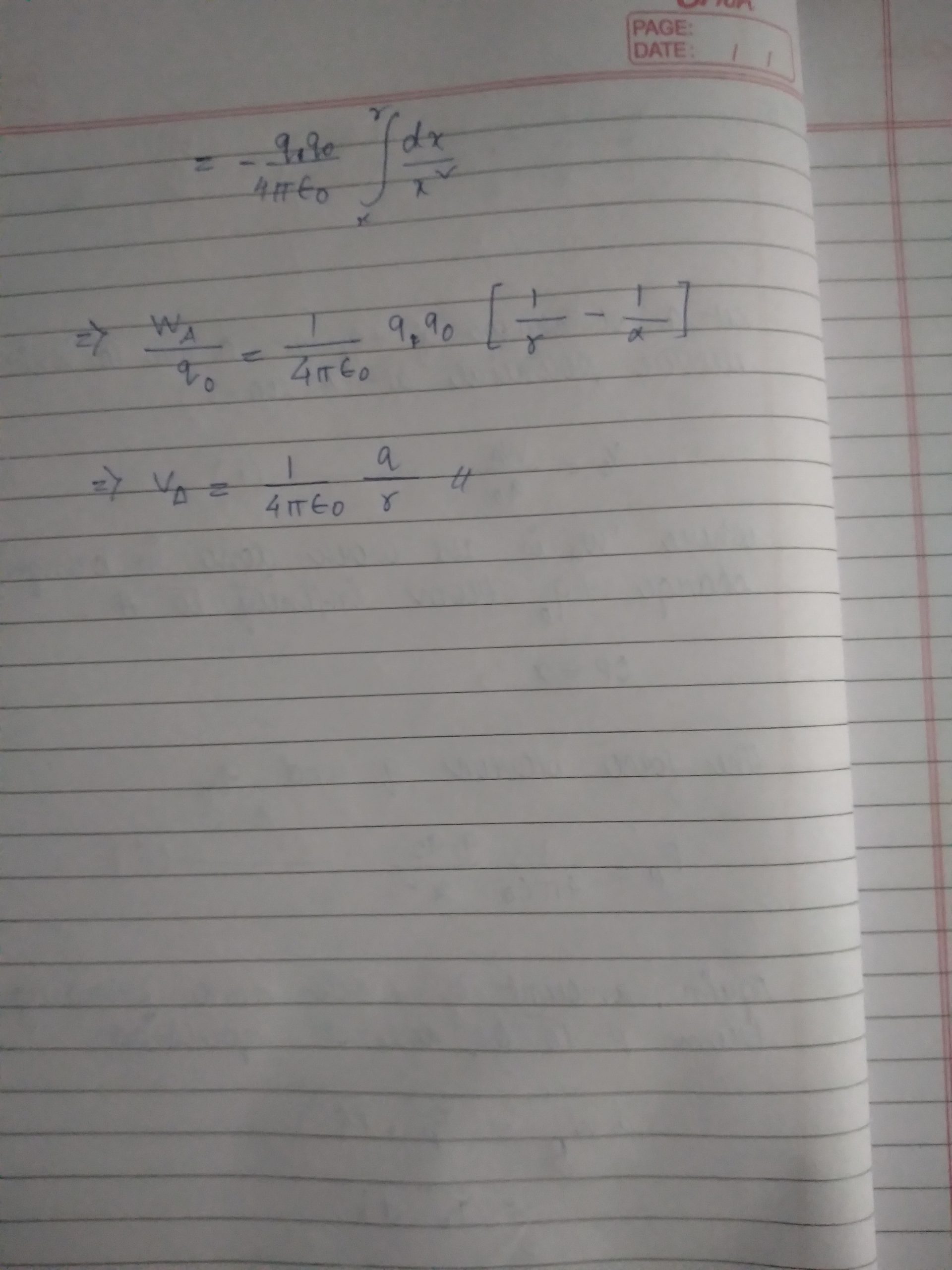

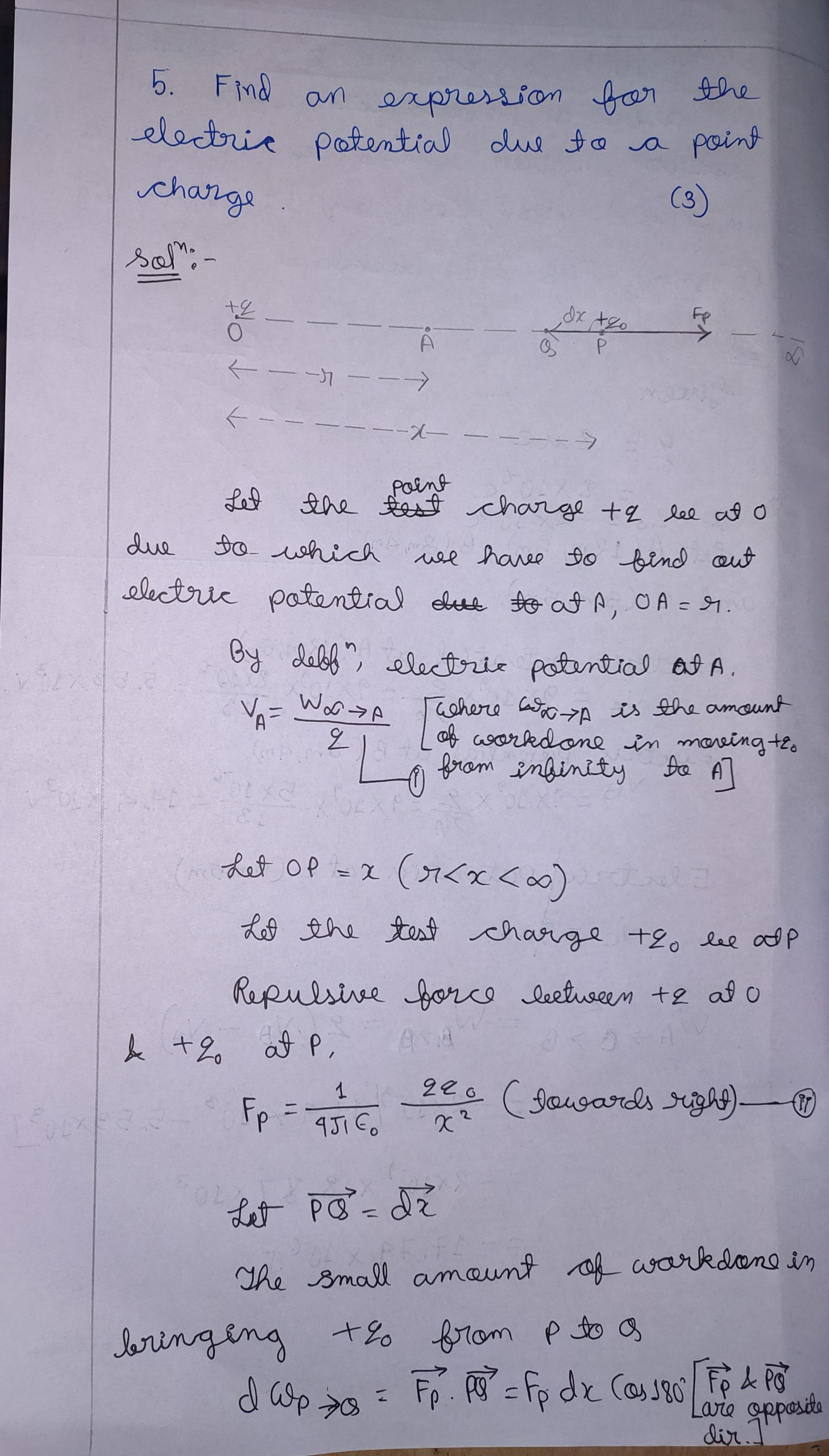

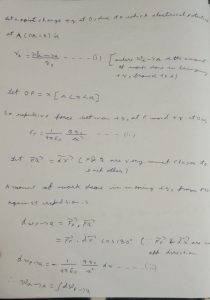

  5. Find an expression for the electric potential due to a point charge .    (3)
